BaumaLight CF572
CF572 Open Front Skid Steer Rotary Brush Cutter Model
The rugged frame of the CF572 heavy-duty rotary brush cutter houses four AR400 blades featuring an 82" path width. The 1/4” steel deck is designed to stand up and perform in rough terrain while cutting trees, brush, unwanted weeds and grass. The 72" wide open mouth of this unit allows you to cut down larger trees in a sawing action.
Standard on the 500 series rotary brush cutter, the Brush Bar helps to funnel brush under the Rotary Brush Cutter to the AR400 blades. The double arch design of the push bar works to pull the taller, heavier brush to the hardened blades, making quick work of woody brush and saplings. The rear of the unit is guarded by a chain curtain so standing brush enters and mulched debris exits as you break new trails, clear ditches, construction, property sites, and other overgrown areas.
Two Cuts per Pass As the rotating rotor mass throws the slasher blades at small diameter trees, the blade slices small sections away as the Rotary brush cutter advances forward. The curved cutting tips of the slasher blades give the Rotary brush cutter two cuts per pass of each blade. The leading tip takes a small bite and is immediately followed by the second tip taking another bite at 26–52 slashes per second with devastating results. Available in either 2 or 4 blade configurations the Rotary brush cutter’s reversible/replaceable blades are made of long lasting 1/4" AR 400 steel. |
Gear Box Standard on all Rotary Brush Cutter models is a relief valve. Set at 3,000 psi, this valve disengages the driveline if the hydraulic system pressure is too great, thereby protecting both the skidsteer and the Rotary brush cutter. The Rotary brush cutter uses a bevel gearbox capable of handling up to 90HP for final drive output. More durable than conventional direct drive setups, these gearboxes prevent shocks from cutting being passed to the drive motor. |
Hose Armour Standard on all Rotary Brush Cutter models is Hose Armour. This is a tough wrap which coils around the hoses and protects them from the harsh environment of brush cutting. The armour helps to prevent any punctures from fallen brush or trees. |
Slasher Blades Crafted from 1/4" AR 400 steel, the unique profile of the slasher blades provides increased cutting surface. The blade’s thin reversible profile continuously provides a sharp edge. |
Blade Mount To secure slasher blades to the blade assembly, Baumalight uses Gr. 8 bolts capped off with castle nuts and cotter pins. The blade mount uses a fully welded collar to drop the blade; this spacing helps to reduce the blade from binding while in operation. |
4-Way Model
Designed for easy service, the four-way models feature a heavy-duty rotor with four fixed extensions. Each extension is finished off with a slasher blade. This configuration is capable of providing up to 52 slashes per second. |
Chain Curtains
A heavy duty chain curtain reduces discharge of debris. Unlike traditional chain curtains Baumalight’s Rotary Brush Cutter utilizes a curtain rod setup that is free of welds. This setup allows the chain to absorb the impacts and places less strain on the welded link for longer curtain life. |
|
Using a 3/4" top plate and a 3/8" bottom plate, this heavy duty rotor sandwiches the four–way blade assembly in place. |
Shield To protect the output shaft from impact or contamination caused by debris, each model of Rotary Brush Cutter is finished off with a heavy-duty output shaft shield. |
|
Heavy-duty construction and a durable powder-coated finish. |
|
The open front with push bar provides extra control against thick brush and the felling of trees, while the teeth hold the brush as the blades chew it up from below. |
|
Extra traction from anti-slip strips provides improved safety as well as ease of entry and exit from the cab. |
| Down below are photos and video footage taken by Baumalight product owners. Visit our Factory Discount web page to learn how you too can participate in this media discount program. |
|

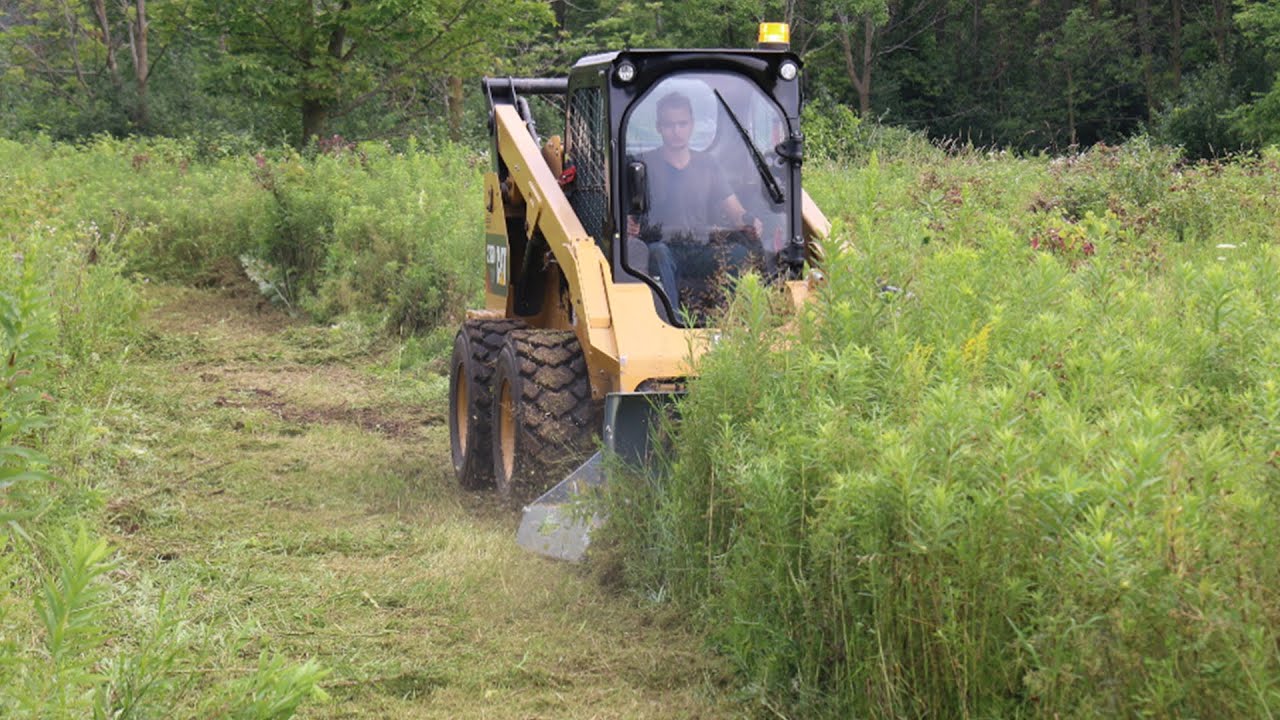

in use by a customer |
