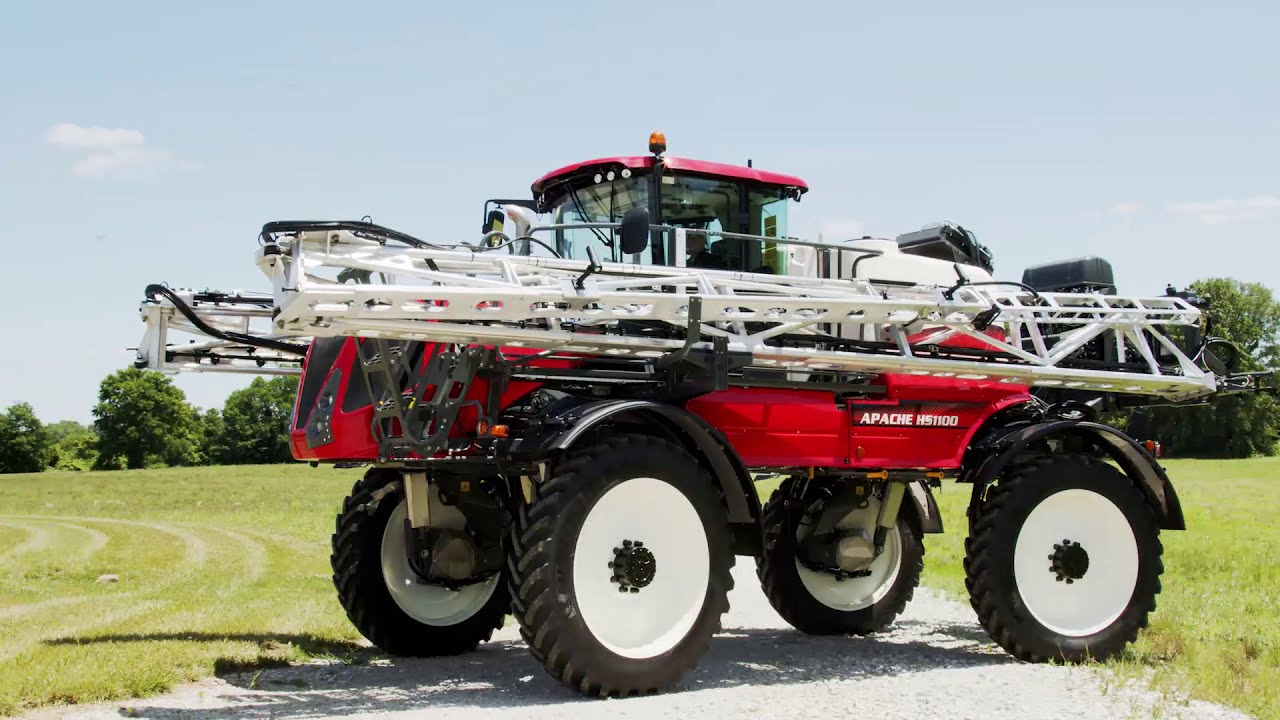

Apache HS1100 Sprayer

  • Apache HS1100 Sprayer
  • Apache HS1100 Sprayer
  • Apache HS1100 Sprayer
  • Apache HS1100 Sprayer
  • Apache HS1100 Sprayer
  • Apache HS1100 Sprayer
  • Apache HS1100 Sprayer
  • Video Button
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Apache Sprayers HS1100

The Apache HS1100 was engineered for farmers who require maximum crop clearance, and powerful hydrostatic drive performance in a self-propelled sprayer. The HS1100 comes equipped with the tallest rear boom in North America that automatically adjusts on-the-go from 60 to 70 inches. And the impressive 300 horsepower Cummins engine, and 1,120-gallon spray tank is ideal for large acreage growers.

The Apache HS1100 Hydrostatic Sprayer features four-wheel steering and slope compensation with back axle correction for better control on hills and headlands. And the crab steer mode allows for enhanced mobility in tight places.
Specifications
Model
HS1100 Sprayer
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Apache
Engine
Cummins Tier 4F 300 hp (rated)
Rear Tires
Michelin 380/90R46
Wheel Base
15′
Front Tires
Michelin 380/80R38
Transmission
ZF Powershift, 6-speed with lock-up torque converter
Fuel Capacity
90 gal
Tank Capacity
1,200
Crop Clearance
50″ with 18″ drop box all-gear final drives
Overall Length
290″ maximum
Top Road Speed
35 mph
Turning Radius
18′
Weight (Approximate Dry Weight)
21,000 lbs
options
Our sprayers are reliable for many reasons, one being our lean manufacturing to build sprayers exactly the way you want them. That means we don’t force you to pay for the things you don’t want or need. Our “a la carte” menu gives you the freedom to choose upgrades, so your sprayer is customized for you and your operational needs.

Option Description
Fence-Row Nozzles These added nozzles are great for keeping fence lines and
outer edges of fields clean. The extra nozzle can be added to the left or right side of the boom, or both.
3-Inch Product Fill Fill up faster thanks to the upgraded 3-inch diameter
product fill connection.
features
Product Tank Capacity: 1,120 gallons
Weight: 28,225 lbs
Rated Horsepower: 300HP
Engine: Cummins T4F
Transmission: Rexroth Hydrostatic
Crop Clearance: 60″-70″ hydraulic adjustable
Four-Wheel Steer: Slope compensation and back axle correction.
Crab-Steer: Enhanced mobility in tight places
Apache HS1100 SprayerIdeal for late-season application, the Apache HS1100 Hydrostatic Sprayer adjusts automatically on-the-go from 60 to 70 inches making it the tallest rear boom sprayer in North America.

Additional Standard Features


Fenders
Our fenders to help keep things clean and prevent dust and mud clogs. Available in the front, rear, or a combination of each.


Enhanced Lighting Package
Our LED lighting package produces more light, while consuming less energy. This lighting package features 64 LED bulbs, located above the grille and cab and next to the fill station. The lights are situated to reduce bounceback reflection. LED bulbs have an average lifespan of tens of thousands of hours.
unique features of the hs1100

Unique Features of the HS1100
  TANK CAPACITY 1,120 gal



CHASSIS, SUSPENSION & TIRES
WEIGHT
(APPROXIMATE DRY WEIGHT)		 28,225 lbs
AXLE WIDTH 120″ – 160″ hydraulic adjustable




TRANSPORT WIDTH & HEIGHT 144″ maximum
OVERALL LENGTH 372″ Maximum
TURNING RADIUS 24′ (Two-wheel steer) 13′ (Four-wheel steer)
WHEEL BASE 14′ 7”
FRONT TIRES (STANDARD) Michelin 380/90R46
REAR TIRES (STANDARD) Michelin 380/90R46
CROP CLEARANCE
 		 60″-70″ hydraulic adjustable
SPRAY OPTIONS
 BOOMS

Pommier 100′, 120′, or 132′ aluminum


RINSE TANK
 		 110 gal



ENGINE & DRIVETRAIN
RATED HORSEPOWER		  300 HP
DRIVELINE EFFICIENCY 75%
PTG: HP PER 1,000 lbs. 8
FUEL TANK CAPACITY 100 gal
TRANSMISSION Rexroth hydrostatic
ENGINE
Cummins T4F
